Maximum Cooling Capacity

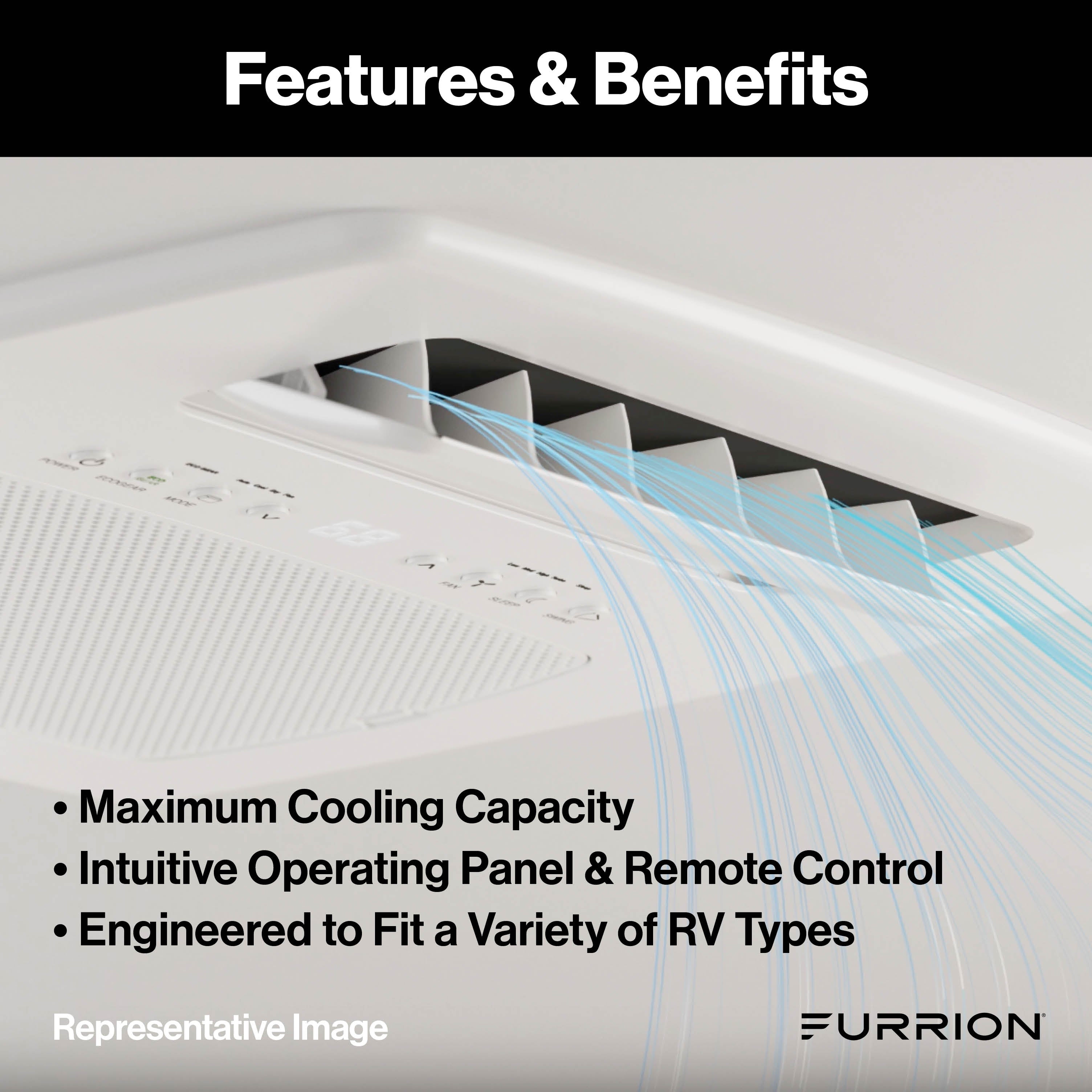

The Furrion Chill Cube 18K air distribution box (ABD) is low-profile and more compact than an average RV air conditioner ADB. This ADB unit projects air forward with an industry-first oscillating vent. Air moves through the vehicle and spans a greater width than standard air distribution boxes, which means better airflow and comfort throughout your RV or van. The design allows cool air to flow from the front and down at a 90-degree angle to cool down the RV fast. The direction is adjustable to allow airflow from the sides for the best cabin cooling experience. Compatible with non-ducted systems, the Chill Cube 18K ADB comes with a detachable filter for easy cleaning and couldn’t be easier to install.

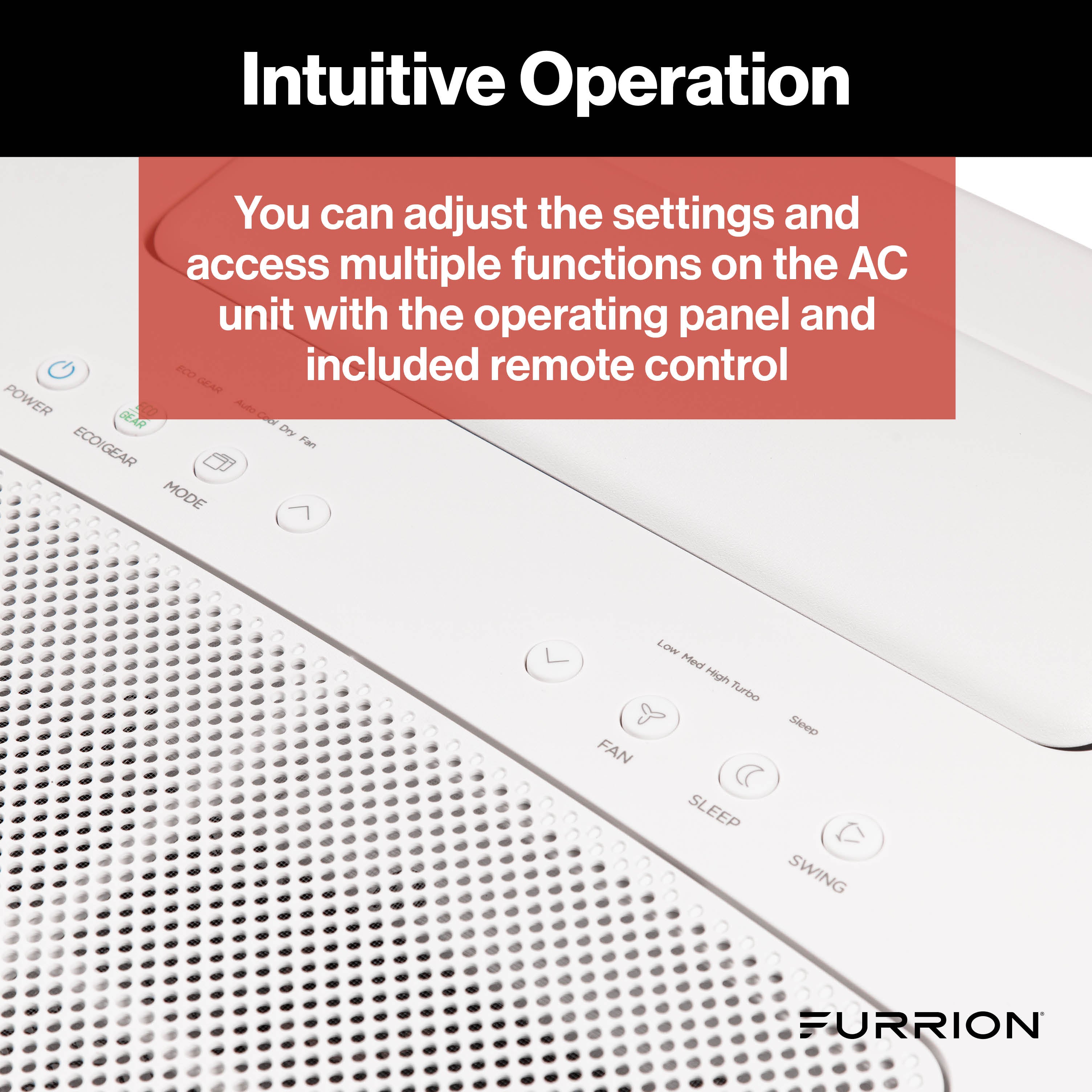

Intuitive Operating Panel & Remote Control

With an intuitive operating panel and included remote control, you can adjust the settings on your AC unit to accommodate your cooling needs. Use the panel to control the unit's power consumption, choose between four operating modes, adjust the fan speed, control oscillation, and more. “Auto” mode provides you with the maximum amount of comfort with maximum power efficiency. “Eco” and “Gear” modes give power-conscientious users the option of cooling with minimal power (“Eco”) or by setting a 75% or 50% maximum power consumption limit (“Gear”). “Turbo” mode is a fan setting that provides you with an airflow boost for times when you really want to feel the chill! The ADB remote comes with additional features that allow you to get the most out of your AC system. “Follow Me” mode allows the AC to receive data about the temperature in the room from the temperature sensor installed in the remote control, which allows you to more precisely reach the temperature set point in the area where the remote control is located — no more than 26 feet from the AC unit and in sight of the ADB. It’s just like having a portable thermostat!

Engineered to Fit a Variety of RV Types

This air distribution box works with the Furrion Chill Cube 18K AC to provide a premium cooling experience for any RV or travel trailer with a 3-6" roof thickness and 14" roof opening.

Features

• MAX COOL AIR — With multi-directional airflow from the front, cool air is distributed quickly and quietly throughout the cabin with an industry-first oscillating vent
• ENGINEERED FOR A VARIETY OF RV TYPES — This ADB is compatible with all Furrion Chill RV rooftop air conditioners, allowing for easy installation in any camper with a 3-6" roof and 14" roof opening
• INTUITIVE OPERATION — With the operating panel and included remote control, you can adjust the settings and access multiple functions on the AC unit to accommodate your cooling needs
• LOW-PROFILE DESIGN — This ADB is thin for a streamlined, modern look that does not interfere with ceiling space
• EASY MAINTENANCE — Compatible with non-ducted systems, the Chill Cube 18K ADB comes with a detachable filter for easy cleaning

Specifications

• Two-way air outlet
• Indoor sound pressure level: 60 dB
• Input power: AC 115V

• Warranty term: 2 Years
• Series: Chill® Cube
• BTU Rating: 18,000
• Refrigerant: R32
• Hardware Part Type: Distribution Box
• UPC: 4895257103439
• Manufacturer reference number: FACT18MA-PS-AM
• Color: White
• Voltage: 115V AC

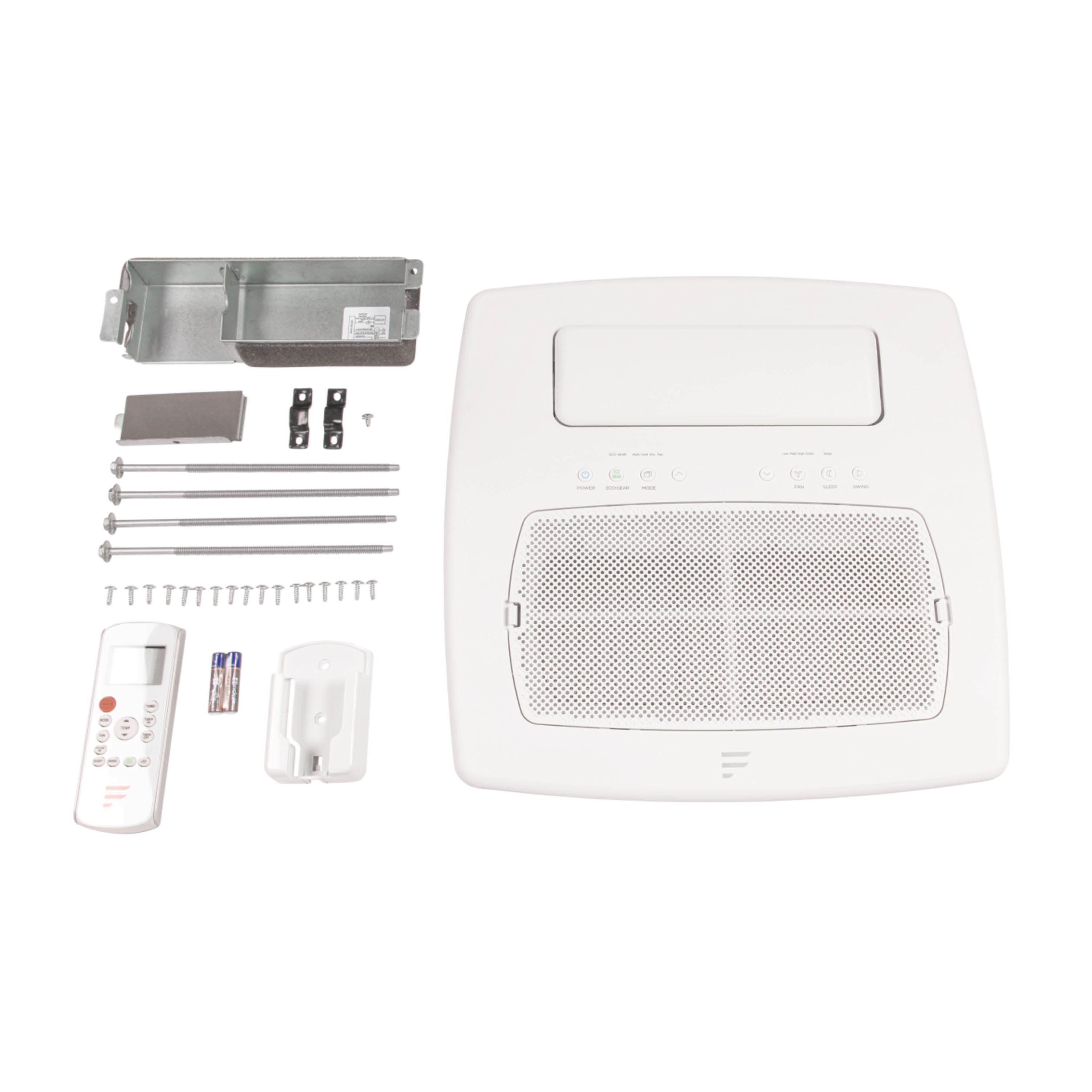

• Electrical Box
• Electrical Box Cover
• Mounting Bolts (Long)
• Mounting Bolts (Short)
• Adhesive Insulation Foam
• Remote
• Wall Mount Holder
