What is an RV Air Conditioner? A Complete Beginner's Guide

4. Refrigerant

Refrigerant is the chemical fluid that cycles through the AC system, absorbing and releasing heat as it changes between liquid and gas. It’s essential to the cooling process, flowing through the evaporator and condenser coils in a pressurized loop.

5. Evaporator Coils

These coils are located inside the rooftop AC unit and are responsible for cooling the air. Warm interior air passes over the evaporator coils, where heat is absorbed by the refrigerant inside. As the refrigerant evaporates, it cools the air, which is then pushed back into the cabin.

6. Compressor

The compressor is the powerhouse of the AC system. It pressurizes the refrigerant gas coming from the evaporator coils, increasing its temperature so it can release heat once it reaches the condenser coils. The compressor keeps the refrigerant moving through the system in a closed loop. The best RV AC units have a variable-speed compressor, such as the Furrion Chill Cube, to keep the system nice and quiet while it operates.

7. Condenser Coils

After the refrigerant is compressed into a high-pressure gas, it flows through the condenser coils. These coils release heat to the outside air, condensing the refrigerant back into a liquid so it can continue the cycle.

8. Fans

Fans are critical to moving air through the AC system. They pull warm air from inside your RV and push it across the evaporator coils, where the air is cooled. These built-in fans also help circulate outside air over the condenser coils to release heat. Without these fans, the system wouldn’t be able to transfer heat or distribute cooled air effectively. A properly functioning fan ensures steady airflow and even cooling throughout your RV.

9. Filter

The air filter sits inside the ADB and captures dust, pollen, and debris from the air before it’s cooled and recirculated. Keeping the filter clean is key to maintaining airflow and ensuring your AC runs efficiently.

10. Controller

Acting as the command center, the controller coordinates the entire system. It communicates with the thermostat, telling the rooftop unit when to activate and how much cooling power to use.

How Does an RV Air Conditioner Work?

Now that's we've covered the different parts of the RV AC system, let's talk about how these different parts work together to actually condition the air in your living space.

1. The thermostat triggers the AC when the temperature rises above your set point.
2. Warm air is pulled from inside the RV through the ADB and directed over the evaporator coils.
3. Refrigerant inside the coils absorbs the heat, cooling the air and turning the refrigerant into a gas.
4. The compressor pressurizes the refrigerant gas, making it hot and pushing it toward the condenser.
5. Heat is released through the condenser coils on the outside of the unit, and the refrigerant cools back into a liquid.
6. The cooled refrigerant recirculates, and the cool air is blown back into the RV.
7. The cycle repeats until the interior temperature matches your thermostat setting.

Learn more about how your RV AC works

Types of RV Air Conditioners

Not all RV ACs are the same. There are a few different styles depending on your rig, layout, and cooling needs.

Rooftop Units

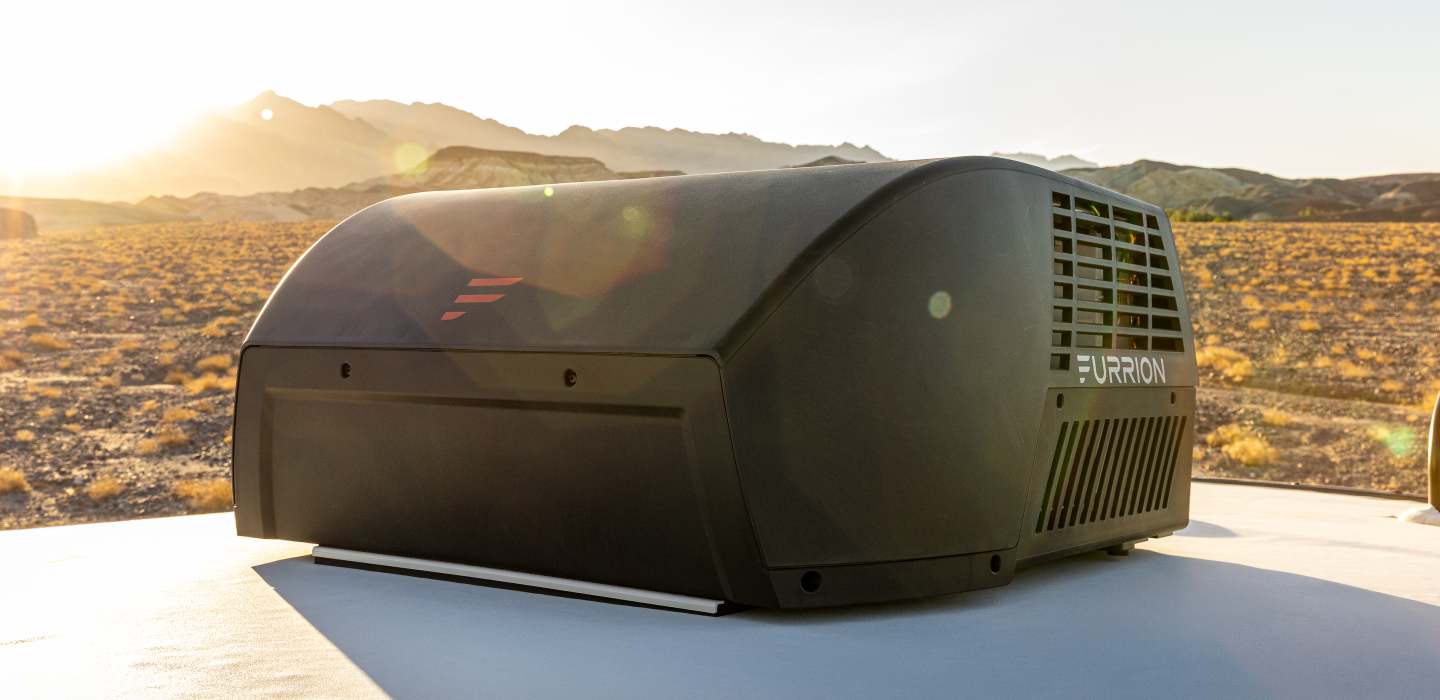

Rooftop air conditioner units are the most common type, mounted on top of the RV to save space inside. These are available in both ducted and non-ducted styles.

Under-Bench or Split Systems

These types of air conditioners are mounted in storage areas or cabinets, and are often used in Class B vans or European-style rigs. They’re less common in the U.S. market.

Portable AC Units

Rarely used but sometimes installed as a workaround when a rooftop AC isn’t an option, portable RV air conditioners are typically less efficient and less effective.

Learn more about the different types of RV ACs

Understanding RV AC Performance & System Options

When it comes to understanding your RV air conditioner, it's not just about blowing more cold air (much less blowing hot air!). There are several factors that affect how well your system performs and how well it suits your specific RV lifestyle.

From cooling power to how the system distributes air throughout your rig, understanding these technical details is essential for having a complete picture of what an RV AC actually is. Let’s break down the most important performance features and configuration options to consider.

What are BTUs?

BTUs — short for British Thermal Units — are one of the most important specs to understand about an RV air conditioner. BTUs measure how much heat an AC unit can remove from your RV in an hour. In simple terms, the higher the BTU rating, the more powerful the cooling.

But bigger isn’t always better. Choosing the right BTU rating for an RV depends on a few key factors:

Common BTU Ratings for RV Air Conditioners:

• 9,000-11,000 BTUs
  Best for small travel trailers, teardrops, Class B camper vans, and pop-ups, these lower-capacity units are energy-efficient and can keep compact spaces cool without overworking the system.
• 13,500 BTUs
  The most common size for mid-size RVs and travel trailers, 13.5k units strike a good balance between power and energy consumption. They're ideal for RVs around 20 to 30 feet long with average insulation.
• 15,000 BTUs
  15k AC units are great for larger travel trailers, 5th wheels, and motorhomes that have more interior space to cool, especially in hotter climates.
• 18,000+ BTUs
  These high-capacity systems, like the Furrion Chill® Cube, are designed for bigger rigs and maximum cooling power. They are built to cool large interiors more quickly and evenly.

Single-Zone vs. Multi-Zone Systems

When talking about RV air conditioning systems, another topic that comes up is the single-zone setup versus the multi-zone. The difference comes down to how your RV is cooled and how much control you have over the climate in different parts of the vehicle.

What Is a Single-Zone RV AC System?

A single-zone system uses one air conditioner and one thermostat to cool your RV. This is the most common setup and is perfect for most smaller RVs, travel trailers, and motorhomes with open floorplans.

Key Features of the Single-Zone AC:

• One thermostat controls the entire cooling system
• All cooled air is distributed from a central unit or air distribution box
• Typically non-ducted, though can also be ducted in some cases
• Easier to install and maintain
• Lower cost than multi-zone systems

What Is a Multi-Zone RV AC System?

A multi-zone system, on the other hand, allows you to control the temperature in different areas of the RV independently. It’s often used in larger 5th wheels, Class A motorhomes, and high-end trailers that have multiple living areas, like separate bedrooms, bathrooms, or even garages in toy haulers.

Key Features of the Multi-Zone AC:

• Two or more thermostats (or one multi-zone controller) to manage separate zones
• Often involves two rooftop units or one high-capacity unit with zoned ductwork
• Each zone can have its own fan speed, cooling schedule, or temperature setpoint
• Typically requires ducted airflow for distribution
• Greater comfort and energy efficiency for larger spaces

Do You Need Multi-Zone AC in Your RV?

If your RV has multiple defined living spaces, a multi-zone system adds flexibility and comfort. However, if your layout is compact or open, a single-zone system is likely more than sufficient, and it’s simpler to install, maintain, and power.

Also consider whether your unit is ducted (which can support zoning more easily) or non-ducted, which generally supports only single-zone cooling.

Ducted vs. Non-Ducted Systems

Another key factor in how your RV air conditioner delivers cooling is whether it uses a ducted or non-ducted system. We've already mentioned ducted and non-ducted systems to a degree, but let's explain what they actually are.

The presence or absence of ducting has a big impact on air distribution, installation complexity, noise levels, and how many zones you can control. Understanding the difference will help you determine what setup best matches your RV layout and comfort expectations.

What Is a Ducted RV AC System?

A ducted system uses ceiling-mounted ductwork to deliver cooled air from the rooftop unit to multiple vents throughout the RV. Instead of blowing cool air directly from the unit itself, a ducted AC circulates air more evenly through hidden passageways within the ceiling. This helps maintain consistent temperatures across different areas of your RV, especially in larger rigs with separate rooms or zones.

Ducted systems are often paired with rooftop units and controlled by a central thermostat or digital controller. Because the fan and cooling components are isolated in the rooftop unit, ducted systems are generally quieter inside the RV. The streamlined look also contributes to a cleaner interior aesthetic.

These systems can support multi-zone cooling and are preferred in RVs where airflow needs to be distributed to different living, sleeping, and kitchen areas.

Ducted Pros:

• Quiet operation, since fans are isolated in rooftop units
• Clean, streamlined appearance with low-profile interior components
• Better air distribution in larger RVs

Ducted Cons:

• More complex installation and harder to retrofit
• Less accessible for DIY maintenance
• Requires compatible ductwork in your RV’s ceiling

What Is a Non-Ducted RV AC System?

A non-ducted system delivers air directly from the air distribution box (ADB), which is installed on the ceiling inside the RV. There’s no ductwork. Cooled air is blown straight into the room where the unit is mounted. This style is common in smaller RVs and most rigs that don’t have ceiling ducting.

A non-ducted system pushes cool air directly from the unit’s ADB into the RV cabin. There are no ducts involved, making this type of system ideal for smaller RVs, campers, or trailers that have an open layout or lack the space for ductwork. Air is distributed through adjustable vents located on the ADB, usually positioned in the middle of the RV’s ceiling.

Non-ducted units are generally simpler and more affordable to install. Most come with manual controls or a remote, and the filter is easily accessible from the inside, making maintenance quick and easy. However, because the fan and airflow come directly from the ceiling unit, these systems can be noisier (unless they have a variable-speed compressor like the Chill Cube!), and airflow may not reach the far ends of longer RVs.

This type of system works best in compact spaces where a single cooling source can cover the entire area, such as in smaller trailers, vans, or budget-friendly motorhomes.

Non-Ducted Pros:

• Simpler, more affordable setup
• Easy to access and clean filters or vents
• Great airflow in a single-room space

Non-Ducted Cons:

• May be louder than ducted systems
• Less consistent airflow in very large RVs
• Can struggle to cool multiple rooms or closed-off areas

Which One Is Right for You?

If your RV is 30 feet or longer and has multiple rooms or separate sleeping areas, a ducted system will offer better airflow and zoning options.

If your RV is under 30 feet with a single open living space, a non-ducted system is likely all you need, and it will be simpler to maintain.

Also note, some AC models (like the Furrion Chill® series) are designed to be compatible with both ducted and non-ducted setups, giving you flexibility during installation or replacement.

RV Air Conditioner vs. Home Air Conditioner: What’s the Difference?

While RV air conditioners and home air conditioners serve the same basic purpose — keeping indoor air cool and comfortable — their designs, capabilities, and constraints are very different. RV ACs are built for mobility, energy efficiency, and versatility, which means they operate under a completely different set of conditions than the AC in your house.

Let’s explore how these systems differ.

1. Power Source & Voltage

Home ACs typically run on a 240V electrical system and draw significant amounts of power, often from dedicated circuits.

RV ACs run on 120V and must be compatible with varying power sources: shore power, generator power, or even inverter systems. This makes energy efficiency a critical part of their design, especially for boondocking or off-grid travel.

2. Size & Cooling Capacity

Home AC systems are large, often central units with 2 to 5 tons of cooling power (24,000 to 60,000 BTUs).

RV air conditioners are much more compact, with ratings from 9,000 to 18,000 BTUs, optimized for smaller, insulated spaces and variable environments.

3. Installation & Design Constraints

Home ACs have dedicated installation zones (outside condensers, indoor furnace or air handler, ductwork).

RV ACs must be lightweight and compact, often mounted on the roof or under a bench. They need to withstand bumps, vibrations, road dust, and weather exposure while maintaining a sealed, aerodynamic profile.

4. Airflow & Distribution

Residential AC systems use ductwork throughout the home for even airflow and often include return vents.

RV ACs may use ducted or non-ducted airflow (see above), and airflow is managed through compact ceiling vents or small ducts. Even distribution is more challenging due to smaller fan motors and limited layout options.

5. Noise Levels

Home AC units are designed for ultra-quiet performance, especially split systems with noisy compressors located outside.

RV ACs tend to be louder, especially non-ducted models, as fans and compressors are closer to living areas. However, newer models — especially variable-speed ACs like the Furrion Chill® Cube — are closing that gap with significantly quieter operation.

6. Durability & Mobility

Home ACs stay in one place and operate under relatively consistent conditions, varying weather conditions and temperatures notwithstanding.

RV air conditioners are exposed to extreme environmental shifts (heat, humidity, elevation) and must survive bumpy roads, tilts, voltage fluctuations, and long-term travel. Materials and engineering are focused on durability and resilience.

7. Functionality & Smart Features

Many home HVAC systems now integrate smart thermostats, zoning, and humidity control.

Modern RV ACs are catching up with digital controllers, multi-zone capabilities, variable-speed compressors, and smart energy-saving modes — all in a more compact, rugged form.

Key RV Air Conditioner Terminology

To wrap up, here’s a handy glossary of common RV air conditioner terms. Whether you’re reading product specs, troubleshooting your unit, comparing different models, or chatting with other RVers, understanding this terminology will help you make smarter decisions and speak the language of RV climate control.

1. Air Distribution Box (ADB)
   The indoor ceiling unit that distributes cooled air into your RV. It may also house the air filter and manual controls.
2. Amp Draw
   The amount of electrical current (in amps) the air conditioner consumes while running. Important for managing power use on limited electrical hookups or generators.
3. BTU (British Thermal Unit)
   A standard unit for measuring cooling capacity. In RVs, ACs typically range from 9,000 to 18,000 BTUs.
4. Capacitor
   An electrical component that helps start the AC compressor or fan motor. If your AC won’t start, a faulty capacitor may be to blame.
5. Chill Cycle
   The phase during which the AC actively removes heat from the air. During this time, the compressor and evaporator are both running.
6. Compressor
   The mechanical heart of the AC system. It compresses refrigerant to help it absorb and release heat.
7. Condenser Coils
   Located in the rooftop unit, these coils release heat from the refrigerant to the outside air.
8. Controller
   The user interface for controlling the AC unit. It may be digital, analog, wall-mounted, or remote.
9. Cooling Capacity
   The total amount of heat the AC can remove, typically expressed in BTUs per hour.
10. Ducted System
    A setup where cool air is pushed through ducts in the ceiling and distributed across multiple vents throughout the RV.
11. Ductless (Non-Ducted) System
    An AC setup where air is blown directly into the cabin from the ADB. Ideal for smaller RVs without internal ductwork.
12. Dry Mode
    A dehumidification setting that removes moisture from the air without significantly changing the temperature.
13. Electrical Load Management
    The practice of balancing multiple high-draw appliances (like AC, microwave, water heater) to avoid tripping breakers.
14. Evaporator Coils
    Coils that absorb heat from the air inside your RV and cool it via refrigerant.
15. Fan Mode
    A setting that circulates air without running the compressor. Good for ventilation or nighttime air circulation.
16. Fan Speed Settings
    Typically include low, medium, high, or auto. Some models offer variable-speed fans for quieter and more efficient operation.
17. Filter
    A mesh or foam insert that traps dust and debris. Keeping it clean improves airflow and system longevity.
18. Freon
    A commonly used term for refrigerant. Modern RV ACs often use more eco-friendly refrigerants like R-410A or R-32.
19. Heat Pump
    An AC unit that can reverse its cycle to provide heat. Great for cool evenings, though less effective in freezing conditions.
20. Inverter Generator
    A generator that provides cleaner, more stable power for sensitive electronics and air conditioners.
21. Load Shedding
    Automatically turning off or reducing power to certain appliances (like the AC) to prevent overloading an electrical system.
22. Multi-Zone System
    An AC setup with multiple thermostats and/or units that allow independent climate control in different areas of the RV.
23. Overhead Unit (Rooftop Unit)
    The external component mounted on your RV’s roof that houses key parts like the compressor, coils, and fans.
24. Pre-Charged System
    An AC unit that comes factory-filled with refrigerant and is ready for plug-and-play installation — no need to charge manually.
25. Return Air Vent
    The intake where warm air is pulled back into the AC system to be cooled again. Clean, unobstructed returns are essential.
26. Refrigerant
    The chemical fluid that absorbs heat inside the RV and releases it outside. R-32 and R-410A are common refrigerants in newer models.
27. Rooftop AC
    The most common type of RV air conditioner. Rooftop ACs are mounted on the roof to save space and vent heat externally.
28. SEER Rating (Seasonal Energy Efficiency Ratio)
    A measure of energy efficiency. While not always listed for RV ACs, a higher SEER means lower energy consumption.
29. Short Cycling
    When an AC turns on and off too frequently, often due to being oversized. Can reduce efficiency and wear out components.
30. Single-Zone System
    An AC setup with one thermostat controlling one area of the RV. Ideal for smaller, open-concept layouts.
31. Startup Surge
    The brief spike in electrical current needed to start the compressor. Important to know when running off generators or solar.
32. Thermostat
    The control device that senses temperature and activates the AC system as needed.
33. Variable-Speed Compressor
    A modern compressor that adjusts its speed based on demand, offering quieter operation, better humidity control, and improved energy efficiency.
34. Voltage Drop
    A reduction in voltage as electricity travels through long cables. Can affect AC performance if power sources are weak or distant.

Ready to Keep Your Cool?

Understanding RV air conditioners isn’t just about knowing what model to buy. It’s about knowing how your system works, how to care for it, and how to choose the right features for your rig and travel style. Whether you're upgrading your current system or shopping for your first RV, having a clear grasp of RV AC systems puts you in the driver’s seat — literally and figuratively.
